Voltage Regulator LM1117T-3.3: Pinout, Application, and Instruction
Voltage Regulator LM1117T-3.3: Pinout, Application, and Instruction

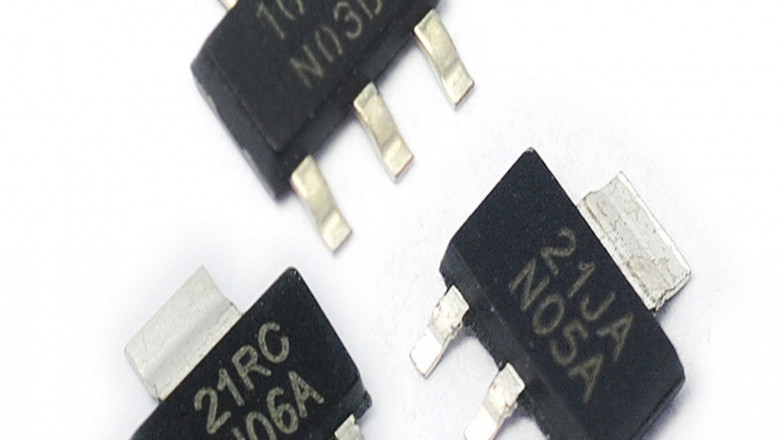

LM1117 is a voltage regulator with low power consumption and a fixed output voltage of 2.85V, which is designed to meet 1A output current and complies with SCSI-II specifications. This device is the best choice for battery-powered applications.

General Description



LM1117 is a voltage regulator with low power consumption and a fixed output voltage of 2.85V, which is designed to meet 1A output current and complies with SCSI-II specifications. This device is the best choice for battery-powered applications, SCSI bus active terminals, and portable computers. LM1117 has a very low quiescent current and very low voltage drop. This type of voltage regulator is generally suitable for occasions where the input and output voltage difference is not too large (3~5V), otherwise, the efficiency will be low and the heat will be serious when the current is large. LM1117 provides current limit and thermal protection. The output requires a tantalum capacitor of at least 10uF to improve transient response and stability.



LM1117 is a series of low dropout voltage regulators. The voltage difference is 1.2V output, and the load current is 1.2V when the load current is 800mA. It has the same pin arrangement as National Semiconductor's industry-standard device LM317. LM1117 has an adjustable voltage version, which can achieve an output voltage range of 1.25 to 13.8V through 2 external resistors. There are also 5 models with fixed voltage output (1.8V, 2.5V, 2.85V, 3.3V, and 5V). The circuit includes a Zener-adjusted bandgap reference voltage to ensure that the accuracy of the output voltage is within ±1%. The LM1117 series is available in LLP, TO-263, SOT-223, TO-220, and TO-252 D-PAK packages.



LM1117 is suitable for high-efficiency linear regulator, battery power supply equipment, battery charger, small computer system terminal interface, and notebook power supply equipment.



Specification



Operating Temperature: 0°C~125°C

Current Rating: 800A

Current - Supply (Max): 10mA

Voltage - Input (Max): 15V

Output Voltage: 3.3V

Max Output Current: 800mA

Quiescent Current: 5mA

Output Voltage 1: 3.3V

Voltage Dropout (Max): 1.2V @ 800mA

PSRR: 75dB (120Hz)

Dropout Voltage: 1.2V

Dropout Voltage1-Nom: 1.2V

Voltage Tolerance-Max: 2%

Min Current Limit: 800mA

Nominal Output Voltage: 3.3V

Output Voltage Accuracy: 1 %



Pinout Description



LM1117 pin



LM1117 pin description



CAD Model



LM1117 cad model



Instruction



How to Use



There is a 1.25V reference voltage VREF developed by the LM1117S-ADJ adjustable version between the output and the adjust terminal. In the figure below, this voltage is applied across resistor R1 to generate a constant current I1. At the same time, the current IADJ is generated from the adjusted terminal which will cause an error to the output. However, this error can be ignored because it is extremely small (60µA) compared with I1 and it is very constant with line and load changes. The current I1 then flows through the output set resistor R2, thus the output voltage could be set to the desired level.



How to Use lm1117



Where to Use



In the figure below, we can see that the component count is very minimal. There are two resistors used as part of the voltage divider circuit and an output capacitor used to improve transient response and stability. 10-μF tantalum on the input is a suitable input capacitor for almost all applications. An optional bypass capacitor across R2 can be used to improve PSRR and prevent ripple from being amplified as the output voltage is increased. In this circuit, the output voltage is set based on the selection of the two resistors R1 and R2. The output capacitor must meet the required conditions for both minimum amounts of capacitance (10 μF) and equivalent series resistance (ESR) (0.3 Ω to 22 Ω).



Where to Use lm1117



User Guidelines



1. The device may be damaged when stresses are beyond the absolute maximum ratings provided in the datasheet.

2. If the device is exposed to the absolute-maximum-rated conditions for extended periods, its reliability may be affected.



Click the link to check more details

https://www.easybom.com/blog/a/voltage-regulator-lm1117t-3-3-pinout-application-and-instruction
