General Description

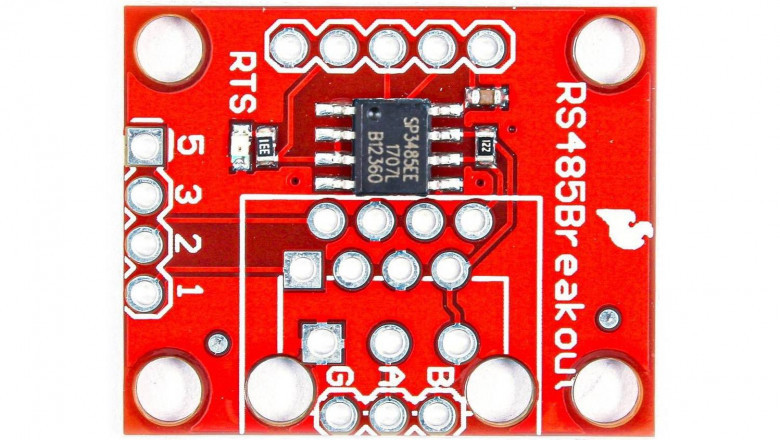

The SP3485 is a +3.3V low-power half-duplex transceiver that complies with the RS-485 and RS-422 serial protocol requirements. The Exar SP481, SP483, and SP485 devices, as well as popular industry standards, are pin-to-pin compatible with this device. The Exar BiCMOS process is used in the SP3485, which allows for low-power operation without losing performance. Up to 10Mbps under load, the SP3485 may meet the electrical standards of the RS-485 and RS-422 serial protocols.
Features
• Transceiver RS-485 and RS-422
• Can be powered by a single +3.3V supply
• Compatibility with +5.0V logic
• Enable the driver/receiver
• Common-Mode Input Voltage Range: -7V to +12V
• The serial bus can support up to 32 transceivers.
• Pinout conforms to industry standard 75176
• Short-circuit protection for the driver output
CAD Models
Symbol
Footprint
3D Model
Specification
· Technical
· Operating Temperature－0°C~70°C
· Moisture Sensitivity Level (MSL)－1 (Unlimited)
· Technology－BICMOS
· Voltage - Supply－3V~3.6V
· Supply Voltage－3.3V
· Terminal Pitch－1.27mm
· Receiver Hysteresis－20mV
· Receive Delay-Max－100 ns
· Transmit Delay-Max－60 ns
