General Description

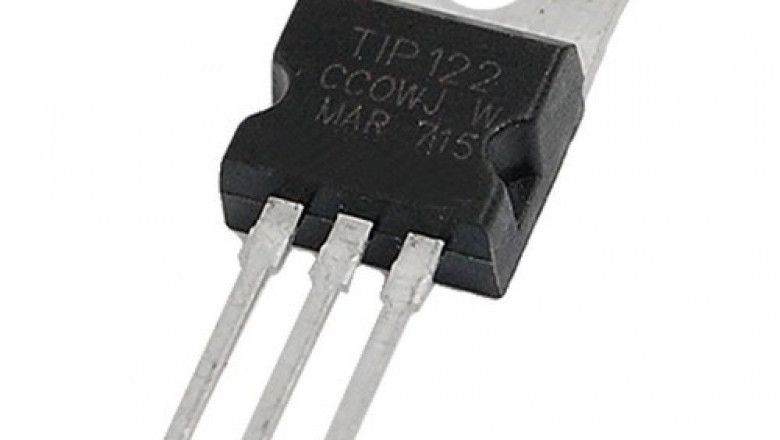

Planar technology is used to create the devices, which have a "base island" arrangement and a monolithic Darlington configuration. The transistors that result have an outstanding high gain performance and a very low saturation voltage.
Features
■ The low collector-emitter saturation voltage
■ Complementary NPN - PNP transistors
Applications
■ General-purpose linear and switching
CAD Models
Symbol
Footprint
3D Model
Specification
Technical
-
Operating Temperature－150°
-
Part Status－Active
-
Moisture Sensitivity Level (MSL)－1 (Unlimited)
-
Voltage - Rated DC－100V
-
Max Power Dissipation－65W
-
Current Rating－5A
-
Power Dissipation－2W
-
Transistor Application－SWITCHING
-
Collector-Emitter Voltage (VCEO)－100V
-
Max Collector Current－5A
-
Current - Collector Cutoff (Max)－500μA
-
Collector-Emitter Breakdown Voltage－100V
-
Collector-Emitter Saturation Voltage－4V
-
Collector Base Voltage (VCBO)－100V
-
Emitter Base Voltage (VEBO)－5V
-
Max Junction Temperature (Tj)－150°C
