General Description

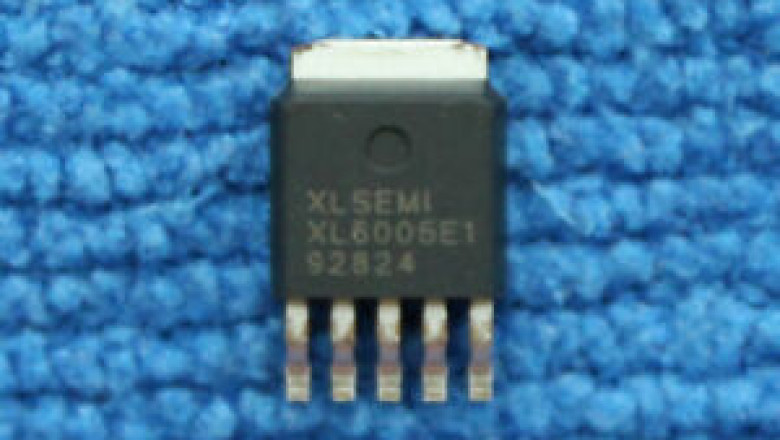

The XL6005 LED constant current driver is a fixed frequency PWM Boost (step-up) LED constant current driver capable of controlling Series 1W/3W/5W LED modules with outstanding line and load regulation. The regulator is simple to use since it features internal frequency correction and a fixed-frequency oscillator, which means it only requires a few external components to function. At VIN>=12V, the XL6005 may directly drive 11 Series 1W LED modules. The duty ratio may be adjusted linearly from 0 to 90% using the PWM control circuit. There is an enabling function as well as an over-current protection mechanism built-in. To reduce the number of external components, an internal compensating block has been included.
Features
-
Input Voltage Range of 3.6V to 32V
-
LED drive current 0.22V FB adjustable
-
11 Series 1W LEDs may be driven directly at VIN>=12V.
-
Switching Frequency: 180KHz (Fixed)
-
Capacity for switching current of up to 4A
-
Efficiencies of up to 94 percent
-
Line and load control are excellent.
-
With PWM Dimming Function with EN PIN TTL Shutdown Capability
-
Internal Power MOSFET Optimization
-
Soft-Start Function is pre-installed.
-
Frequency Compensation is pre-installed.
-
Thermal Shutdown is pre-installed.
-
Integrated Current Limiting Function
-
TO252-5L package is available.
Applications
-
Light Emitting Diodes (LEDs)
-
Driver with a continuous current boost
-
LED Backlighting for Monitors
-
LCD Panels from 7' to 15'
CAD Models
Pin Configuration
Symbol
Footprint
3D Model
Functional Block
Package Dimension
Specification
· Technical
· Packaging－Tape & Reel (TR)
· Function－Step-Up
· Number of Outputs－1
· Voltage - Input (Max)－32V
· Output Type－Adjustable
· Voltage - Input (Min)－3.6V
· Output Configuration－Positive
· Current - Output－4A
· Topology－Boost
· Frequency - Switching－180kHz
· Synchronous Rectifier－No
