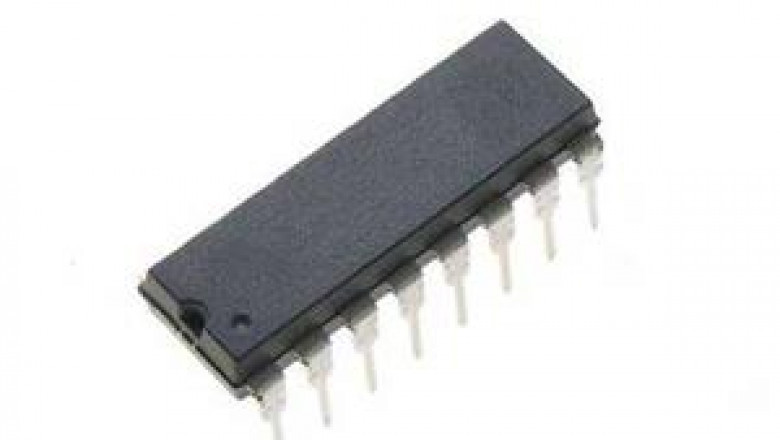

An Introduction of the CD4053BMT Multiplexer
An Introduction of the CD4053BMT Multiplexer
The CD4053BMT analog multiplexer is controlled digitally analog switches. It has a low ON impedance, and a very low leakage current OFF. It has three digital control inputs containing A B, C, and as well as an inhibit input. Each control input can select one of the channels, which are connected in a single-pole double-throw arrangement.

Introduction



The CD4053BMT analog multiplexer is controlled digitally analog switches. It has a low ON impedance, and a very low leakage current OFF. It has three digital control inputs containing A B, C, and as well as an inhibit input. Each control input can select one of the channels, which are connected in a single-pole double-throw arrangement. The CD4053BMT multiplexer is general use and is suitable for analog and digital multiplexer and demultiplexer, signal gate, factory automation, televisions, and as well as A/D and D/A conversion.





Features



Binary Address Decoding on Chip

100% Tested for Quiescent Current at 20 V

Break-Before-Make Switching Eliminates Channel Overlap





Diagram



Diagram





CAD Model



Symbol

Symbol





PCB Footprints

PCB Footprints





3D Models

3D Models





Specifications



Supply Chain



Factory Lead Time - 6 Weeks



Physical



Number of Pins - 16

Weight - 141.690917mg



Technical



Operating Temperature -   -55°C~125°C TA







Circuits of CD4053BMT



Circuits of CD4053BMT





Alternative Models



MC14053BDR2G, CD4053BM96G3, CD4053BM





Where to Use CD4053BMT?



The CD4053BMT multiplexers are a type of device which can take multiple input signals, and create a single output signal in accordance with the mode for recovery of every input signal. A multiplexer is a system that is integrated and typically comprises several data inputs as well as a single output. It is able to select one of the digital or analog input signals and then forward it. Then, the various signals are selected are sent on the identical output line.



The purpose of using the CD4053BMT multiplexer is to make the best utilization of the potential of the communication channel and also decrease the cost for the entire system. For instance, when you have two lines of telephone the frequency of communication typically exceeds 100kHz. The frequency band for each telephone signal is typically restricted by below 4kHz. It means that the bandwidth that the signal can transmit is greater than the information transmission capability of a phone.



multiplexers





How to Use CD4053BMT?



With the help of a multiplexer system, the multichannel data can be shared on one channel. When the flow of data over an exchanged line continues, sharing technique can yield excellent results. It is evident that this is cheaper than having a separate line of communication to each terminal. The CD4053BMT multiplexers are usually used in pairs. One is a continuous terminal and the other one close to the host. Its job is to take in the data stream that is composite, depending on channels separation the data. It sends the data to the appropriate output line.



The CD4053BMT multiplexers can affect the efficiency that the signal chain performs in a number of ways. Conductance, for instance, can create a crossing over between the two channels. Changes in temperature and signal on-resistance can cause distortion in signals. The capacitance and resistance of the multiplexer will restrict the signal's signal bandwidth. Charge injection could cause problems with transients when it changes channels, which affects the stability of the output.
