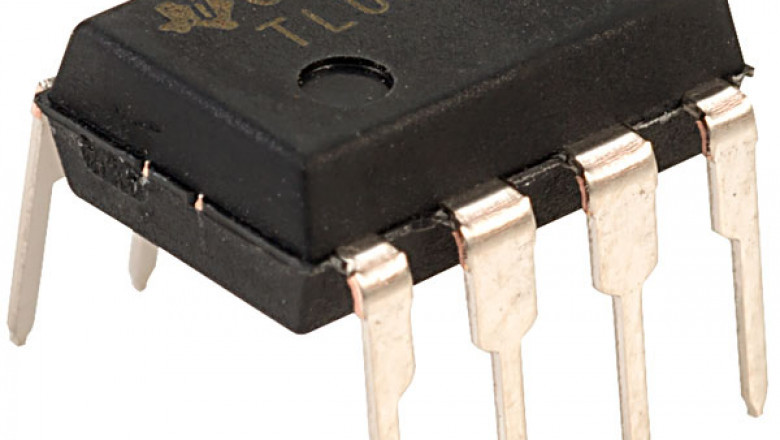

JFET-input operational amplifiers in the TL07x series are similar to the TL08x series in that they feature low input bias and offset currents and a fast slew rate. The low harmonic distortion and noise of the TL07x series make it ideal for high-fidelity and audio preamplifier applications. Each amplifier combines JFET inputs (for high input impedance) with bipolar output stages on a single monolithic chip.
The devices with the C suffix are designed to work in temperatures ranging from 0 to 70 degrees Celsius. The temperature range of the I-suffix devices is 40°C to 85°C. The M-suffix devices are designed to work in temperatures ranging from 55 to 125 degrees Celsius, which covers the whole military temperature range.
Features
-
Wide Voltage Ranges in Common-Mode and Differential Modes
-
Low Power Consumption
-
Low Input Bias and Offset Currents
-
Output Short-Circuit Protection
CAD Models
Symbol
Footprint
3D Model
Dimension
Specification
· Technical
· Operating Temperature－0°C~70°C
· Moisture Sensitivity Level (MSL)－1 (Unlimited)
· Technology－BIPOLAR
· Supply Voltage－15V
· Operating Supply Current－1.4mA
· Nominal Supply Current－5mA
· Slew Rate－13V/μs
· Bandwidth－3MHz
· Average Bias Current-Max (IIB)－0.007μA
· Dual Supply Voltage－9V
· Nominal Gain Bandwidth Product－3MHz
· Max I/O Voltage－10mV
