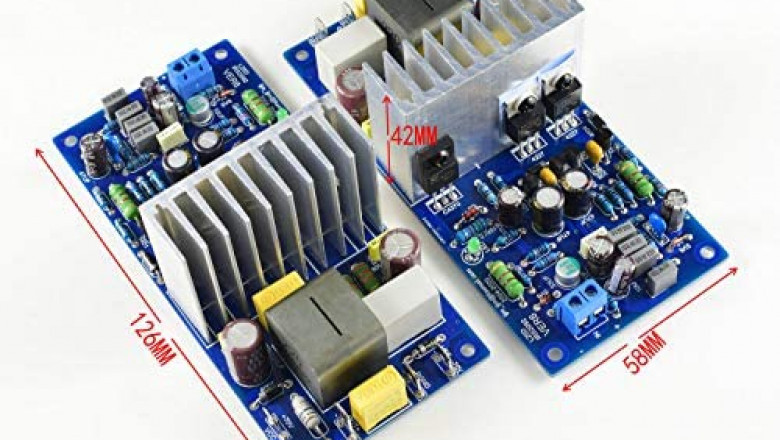

The IRS2092 is a high-voltage and high-performance Class D audio amplifier driver with a PWM modulator and protection. Two external MOSFETs plus a few more components may be used to make a complete Class D audio amplifier with protection.
A high current gate drive stage and a high-speed low noise error amplifier may be coupled on a single small silicon chip thanks to a noise isolation technology developed by International Rectifier. The open parts in the PWM modulator portion allow for a flexible PWM architecture implementation.
Features
-
Integrated analog input Class D audio
amplifier driver in a small 16 pin package -
Floating inputs make it simple to create a half-bridge
-
Over-current protection with a self-reset mechanism that is programmable in both directions
-
Over-current protection with self-reset function is programmable bidirectionally
-
Start and stop click noise reduction
-
High noise immunity
Typical Applications
-
Home theater systems
-
Mini component stereo systems
-
Powered speaker systems
-
General-purpose audio power amplifiers
check the link to learn more details
