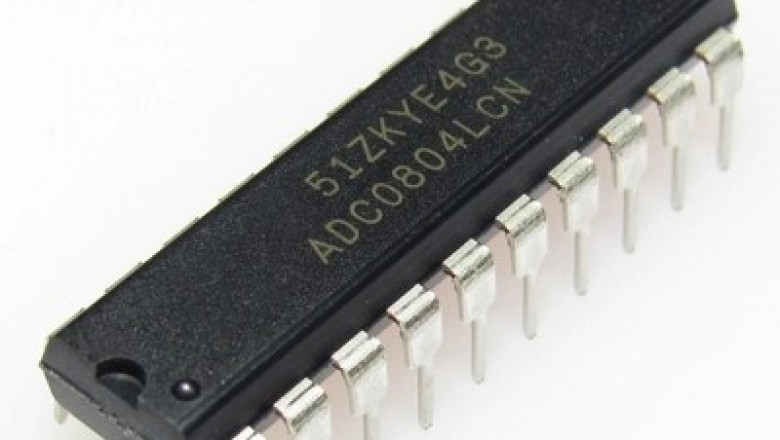

The ADC080X family of A/D converters uses a modified potentiometric ladder and three-state outputs to operate with the 8080A control bus. Because these converters appear to the CPU as memory locations or I/O ports, no interfacing circuitry is required.
The differential analog voltage input has good common-mode rejection and may be used to compensate for the analog zero input voltage. The voltage reference input may also be modified to enable the full 8-bit resolution encoding of any smaller analog voltage range.
Features
-
No interfacing logic is required for the 80C48 and 80C80/85 buses.
-
Most microprocessors have a simple interface.
-
Differential Analog Voltage Inputs
-
Works with Bandgap Voltage References
-
TTL Compatible Inputs and Outputs
CAD Models
Pin Configuration
Symbol
Footprint
3D Model
Functional Diagram
Specification
· Technical
· Operating Temperature－0°C~70°C
· Moisture Sensitivity Level (MSL)－1 (Unlimited)
· Technology－CMOS
· Terminal Pitch－2.54mm
· Architecture－SAR
· Voltage - Supply, Analog－4.5V~6.3V
· Voltage - Supply, Digita－l4.5V~6.3V
· Analog Input Voltage-Max－5.05V
· Analog Input Voltage-Min－-0.05V
