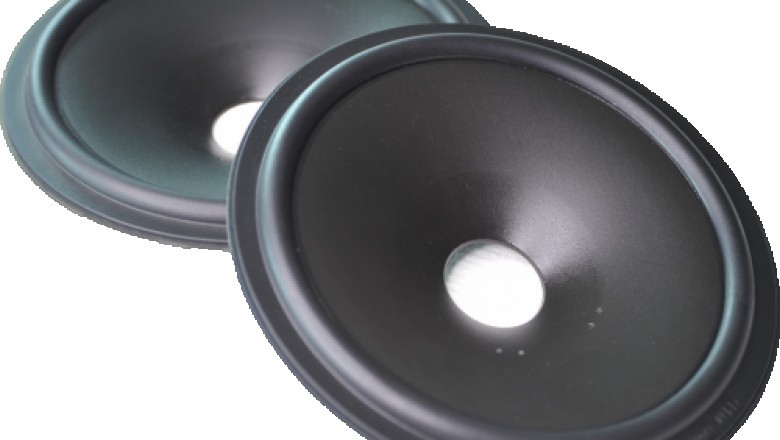

It truly is taken as a standard truth that most speaker factories can duplicate an current design’s frame and magnetic structure, but getting the soft parts appropriate is definitely an art. The cone, surround, spider, and dust cap include many with the secret ingredients in speaker design. Selecting the proper soft parts is challenging, with all the most vital elements becoming the supplies, process, and fabrication. Get far more information about speaker cone manufacturer
Speaker engineers understand that 3 vital physical properties figure out a material’s suitability for use in loudspeaker diaphragms - stiffness, low density, and internal damping. Stiffness, in unique, determines the bending wave velocity, and for any given design, the frequencies at which the very first break-up resonance happen. This resonance in a diaphragm determines the transition point above the frequency point at which the diaphragm loses piston motion and response becomes rougher.
The higher Young modulus (and the steepness from the cone’s body angle as well as the diameter) ascertain at what point things grow to be nasty. The degree of internal damping, or loss element, determines the material’s effectiveness in suppressing such resonances, which is particularly essential near and above the upper resonance. Endumax absorbs particularly high amounts of energy. Whilst this property was made for ballistic protection products, the properties also make the material particularly suited for speaker diaphragms as there might be less energy reaching the surround edge to reflect back.
The most beneficial materials may have higher velocity and high damping, but for those that have used titanium cones and domes, you understand that in many cases these properties are mutually exclusive. Endumax, which is similar to aramids (e.g., Teijin Technora and DuPont Kevlar), offers an incredible mixture of each damping and velocity. Supplies including Endumax have low density so using many layers will result in a stiffer and stronger cone with low weight.
Loudspeaker cones are most commonly formed from paper pulp, but plastics (e.g., polypropylene) are also well known, and sheet material may be vacuum thermoformed (like melting hot cheese more than a type), compression molded, positive/negative molded (or injection-molded) in to the desired shape. Metal cones are also used. Other high-tech solutions that have accomplished accomplishment contain a sandwich construction with skins and honeycomb or foam cores.
In the last years, a number of notable composites for speaker cones and diaphragms have been introduced towards the speaker market. These consist of woven, cross-ply layers and non-wovens, glass fiber, carbon fiber, and aramids (e.g., Kevlar), thermoset, and thermoplastic resins.
Commonly, a specialist cone manufacturer fabricates cones for speaker assemblers, but the biggest offshore speaker companies generally have their very own in-house cone fabrication facilities. Over the last 25 years, I have worked with quite a few of your suppliers that offer materials to the cone market and have visited the majority of the cone factories in Asia and also the US.
Initially glance, absolutely everyone is using exactly the same approaches, but should you dig deeper, the subtle variations is often considerable. Within this article, we take a look in the basics of creating unique varieties of cones - but what I discuss here doesn't start to touch around the secrets that the cone companies have discovered from decades of experience.
Paper Pulp Cone Fabrication
The process begins with sheets of several varieties of pulp. The pulp could possibly come from Douglas fir or exotic blends, which consist of a little of eucalyptus from Brazil, Cambodia, or Australia (incredibly stiff), other specialty pulps from New Zealand, or from the hemp family (Fostex and Dai-Ichi like banana leaves), kapok seed fibers (the poor man’s Kevlar), or many synthetic fibers. The pulp recipes, additives, pulp slurry beating process, and cone forming methods all contribute towards the loudspeaker cone’s characteristics. Young’s modulus (speed of sound), tan delta (internal damping), and mechanical parameters (e.g., tear strength, burst strength, and so forth.) are all aspects that separate the toy cones from the audiophile, studio monitors, electric guitar, or pro sound diaphragms.
Other considerations are wet strength and moisture regain. Will the cone fail if used in a humid environment, will that studio monitor sound precisely the same on a humid day, and how vulnerable is it to UV, fungus, ozone resistance, and so on? We don’t think about the speaker cone’s selection as geographical but type surrounds do not survive in Brazil or Mexico - among corrosive city fumes and microbial foam eating bugs, you will see many rubber or thermoplastic elastomer edges.
Look continues to be one more consideration, and there are several secondary surface remedies that add components that cannot be completely accomplished with all the cone paper qualities. Once the recipe is chosen for any distinct production run, the appropriate paper pulp is soaked in hot water for any time frame determined by the manufacturer. Pieces are torn off the wet pulp sheets (by hand or by machine) and thrown into a water-filled pulp beater. The beating process disperses the fibers even though also fibrillating (fuzzing them up) so they may tangle together, thereby holding the cone with each other. Many of the sector uses the old-style beating machines, which supply potentially great fibrillation. In some cases hydro-pulpers are used, which might be more rapidly in producing the slurry but may not do much fibrillating work around the fibers.
Additives are thrown in to the beater (e.g., salts to hold the dyes which can be largely black), and then the contents are mashed some more. In the case with the beating machine, there is a beating wheel, that is progressively brought closer towards the beater bedplate as the pulp is worked into a slurry of fibrillated fibers. Ultimately, this soup is transferred to a holding tank, which has an agitator to keep the slurry dispersed and homogenized inside the tank. The pulp’s fiber length, density, and “secret sauce” are elements that distinguish distinct speaker cones intended for subwoofers, midranges, musical instruments, and so on.
You'll find 3 common cone paper forming tactics: pressed, semi-pressed, and non-pressed cones. Within the case in the pressed cone, the pulp slurry could be dumped into a bin and drained through a fine mesh screen. The paper fiber solids are left on this screen following the liquids happen to be drained out from the bin. The remains are removed in the mesh and deposited onto the cone pressing machine. Heated constructive and negative metal cone-shaped types then press the pulp. The remaining water steams out of your cone, which can be removed in the forming tool.
When the cone’s density is as well low, then the cone may very well be as well dead-sounding. When the cone is pressed also hard and thin, then breakup (“cone cry”) are going to be much more noticeable, specifically at higher sound levels. The cone density and pulp composition affects the internal loss (“deadness”) from the cone material, which will contribute to the speaker’s sound quality. The speaker cone shape (profile) is often a important factor in the speaker’s sound high quality and functionality. When the cone is straight-sided (probably with concentric reinforcing ribs molded in the cone body), it will be the strongest and more rigid at incredibly low frequencies.
