All of this is available in a package just a little larger then the Frsky Receiver D4FR
This Frsky Receiver D4R-II is a full featured mini sized 4 channel receiver by FrSky. What makes this receiver different from the Frsky Receiver D4FR? The Frsky Receiver D4R-II's data port allows you to connect a sensor hub so you can connect GPS, Variometer, temperature, RPM and all of the other great FrSky sensors. It also has 2 full length detachable antennas. All of this is available in a package just a little larger then the Frsky Receiver D4FR.
Frsky Receiver D4R-II Features:
Firmware upgradeable
full length antennas (replaceable)
One external analog telemetry port and one digital data-stream port (connect to Sensor Hub FSH-01)
RSSI (PWM) and CPPM output - If CH3 and CH4 are connected by a jumper, CH2 will output RSSI (PWM), and CH1 will output CPPM for CH1~CH8
Lighter weight and physically smaller than D8R-II Plus & D6FR
Alarm warning on low voltage, poor reception, etc
Frsky Receiver D4R-II Specifications:
Dimension: 40*22.5*6mm
Weight: 5.8g / 5g (naked)
Operating VoltageRange: 3.5V-10.0V
Operating Current: 60mA
Operating Range: FullRange
Resolution: 3072 (>11bit)
Frsky Receiver D4R-II Compatibility:
FrSky two way telemetry modules: DFT, DJT, DHT, DHT-U

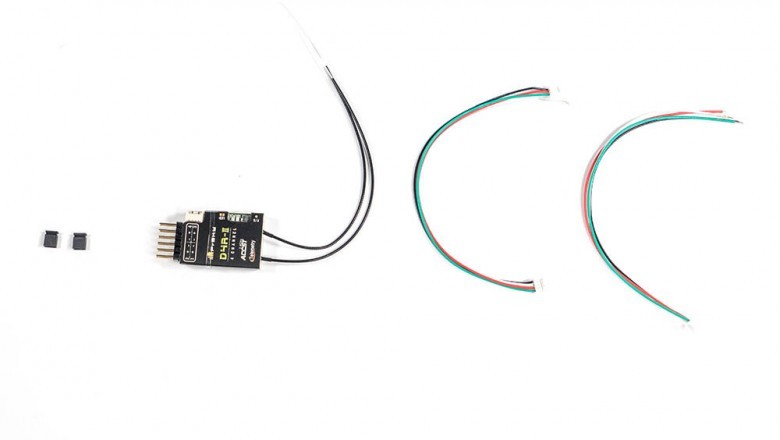

What's in the Box:
1 x D4R-II
2 x Short tool
1 x Data wire
1 x Manual
