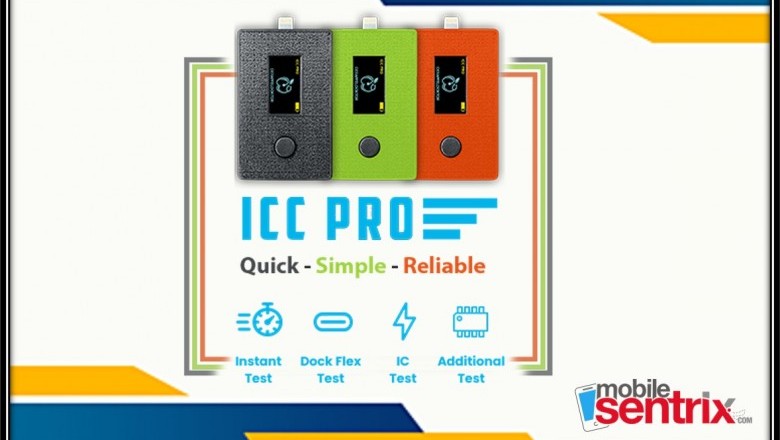

ICC PRO allows you to test USB-Controller IC, as well as charging port, power system & main power line of the device"VCC_MAIN"/"VDD_MAIN". Identify the failed component with a single press of a button! With this small tool, you can check your iPhone's or iPad's charging system in a few seconds. The device will not only tell you if there is any problem but will provide detailed information about what exactly went wrong. with our ICC Pro You will Save both Time and Money
The revolutionary functionality lets you improve and simplify your diagnostic process even further, eliminating potential diagnostic mistakes, saving time and making diagnostic and repair even more effective.
Identify The Point of Failure Quick and Easy
With the help of our ICC PRO you will save a lot of time and, as a consequence, money as well! It takes only a few seconds to run the tests, the tests can even be run right in front of the customer, enabling the technician to provide accurate diagnostic information and estimated repair price in a matter of seconds, be it a problem with a charging port, a chip or a short circuit on the main power line.
Instant Test
As soon as the device starts, it performs a quick USB-Controller IC test. Should the IC be badly damaged and have significant internal shorts, you will be immediately notified, and no further tests will be performed.
Dock Flex Test
This test checks the charging port flex cable for continuity. If any breaks in the lines are detected, you will be notified, and the names of the failed lines will also be provided to you. If the "DockFlex Test” fails, no further tests will be performed.
IC Test
"IC Test" includes not only the test of 6 lines going straight to the USB-Controller IC, but also the PP5V0_USB, which goes directly (but not only) to Tigris. In case of any failure during this test, you will be notified accordingly, and the names of the lines that failed the test will be provided as well. In this case the next test will not be performed.
Additional Test/VCC_Main Test
The last "Additional Test" checks the integrity of the power/charging system and can identify a short circuit on the main powerline VCC_MAIN/VDD_MAIN. In case problems are detected, you will see the"Check VCC_MAIN" message on the screen.
ICC Pro features:
· Built-in Li-Ion 250mah Rechargeable Battery
· USB Type-C Charging Port
· 0.96" OLED Display
· Single Button Operation
· Compact Form-Factor
· NEW! Cool Aluminum Housing
· The full charging time is around 3 hours*
· The charging current is up to 100ma
· The device can work up to a month on a single charge (heavily depends on the frequency of use)
This ICC Pro is a very Important Repair Tool for Repair Shop Owners, it will save you Time, it works quickly. With Mobilesentrix, you can easily get it. Our ICC PRO is available in a wide range of colors.
