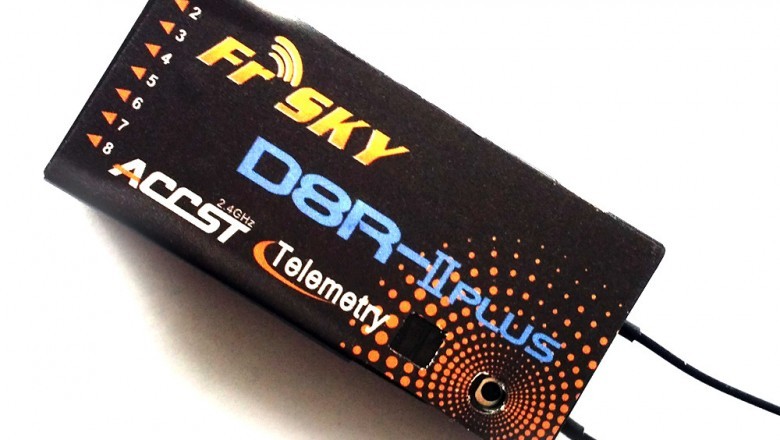

Frsky Receiver D8R-II Plus is support PPM signal
Frsky Receiver D8R-II Plus is support PPM signal
Frsky Receiver D8R-II Plus is support PPM signal.It is an update to the older D8R-II providing a now added internal voltage sensor, as well as the use of an external voltage sensor.The internal voltage sensor provides pack monitoring for glider and IC+ pilots. An external sensor makes provision more for EP fliers.

Frsky Receiver D8R-II Plus is support PPM signal

Frsky Receiver D8R-II Plus is support PPM signal.It is an update to the older D8R-II providing a now added internal voltage sensor, as well as the use of an external voltage sensor.The internal voltage sensor provides pack monitoring for glider and IC+ pilots. An external sensor makes provision more for EP fliers.

Frsky Receiver D8R-II Plus Features:

Advanced Continuous Channel Shifting Technology (ACCSTis our advanced tecnology it shifts channel hundred times per second and there is no signal conflicts and interruptions) robust frequency agility.

Two external analog telemetry ports (A1&A2) and one digital data-stream port (Rx).

When side port pins of A1 and X are connected by the jumper, A1 will change from external analog telemetry port to internal built-in battery voltage sensor.

Convenient to upgrade – no need to open the RX case.

Two switchable PPM modes - FS mode and HS mode.

True Diversity with two antennas.

All channels can be programmed with Failsafe, quickly and easily.

Quick and extremely stable in performance.

Precise and smooth servo response.

Extended range (1.5km-2.5km).

Frsky Receiver D8R-II Plus Specifications:

Operating voltage: 3.5~10.0V

Power consumption: 100mA

Resolution: 3072

Analog voltage: 0~3.3V

Number of channels: 8

Range: 1.5km-2.5km

Dimensions: 55 x 25 x 14 mm

Weight: 12.4g

Frsky Receiver D8R-II Plus Compatibility:

FrSky two way telemetry modules: DFT, DJT, DHT, DHT-U

What's in the Box:

1 x D8R-II plus

1 x Short tool

1 x Manual
