Maximum output voltage: 1012Vrms
Maximum output power: 600VA
Output impedance matched multiple adjustable
LCD Displays
Overload protection
Maximum output power: 600VA
Output impedance matched multiple adjustable
LCD Displays
Overload protection

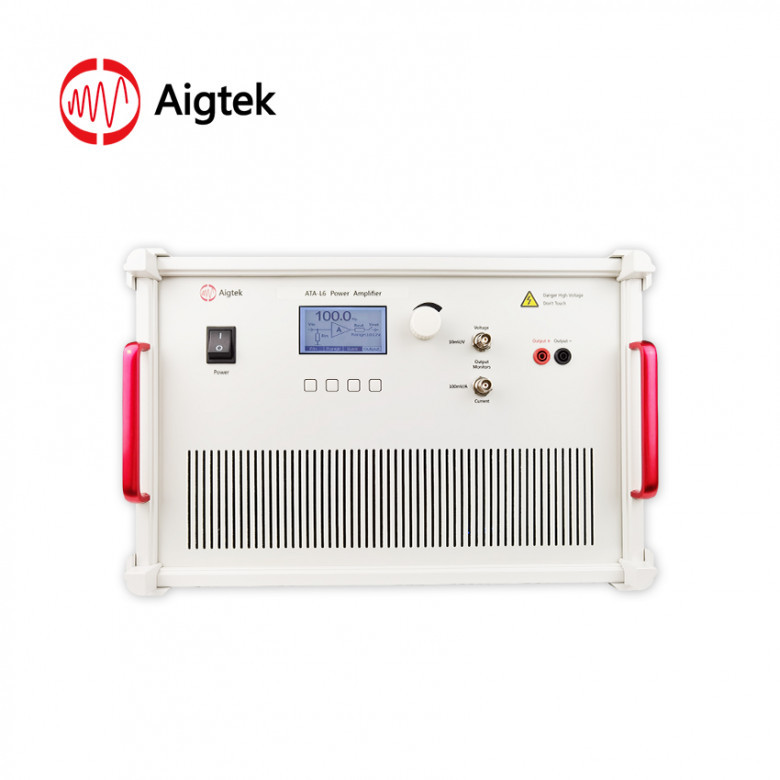

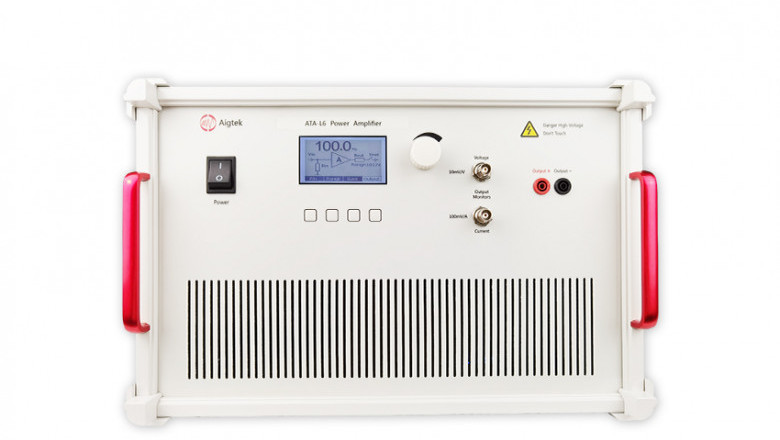

ATA-L6 is an ideal single-channel power amplifier. Maximum output voltage: 1012Vrms ; maximum output power: 600VA, matching with the mainstream signal generator, realize perfect signal amplification.
Input
The input is BNC interface,single-end intput.
LCD Displays
ATA-L6 is provided with LCD to display the equipment state and parameters dynamically, the operation interface is clear at a glance, concise and easy to understand.
Monitor
Output current monitor:100mV/A
Output voltage monitor:10mV/V
Output interface is BNC that can be directly connected to the oscilloscope for real-time monitoring
