Maximum output current 8Ap
Bandwidth (-3dB) up to DC~30KHz
Slew Rate 12V/?s
Introduction

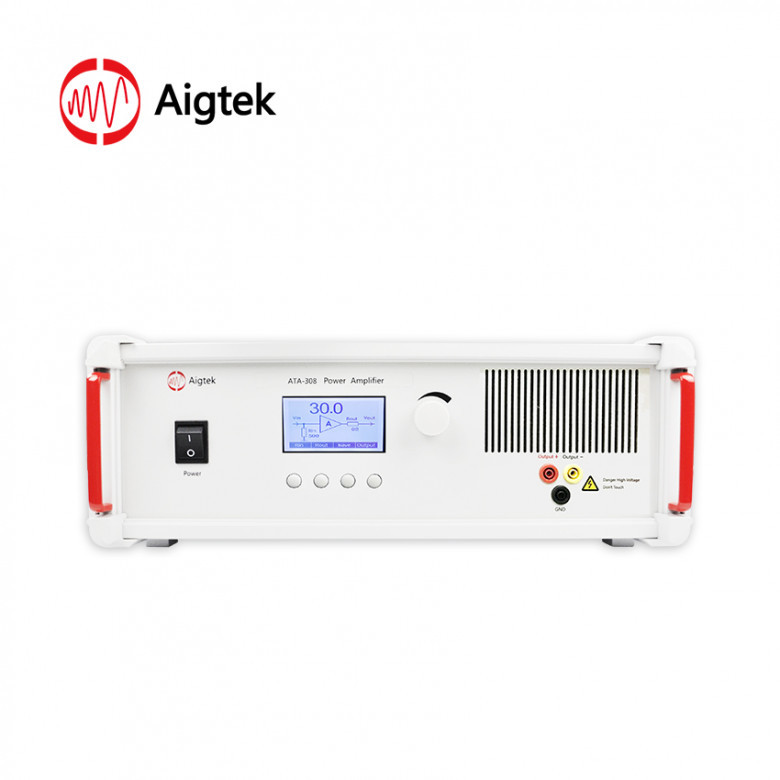

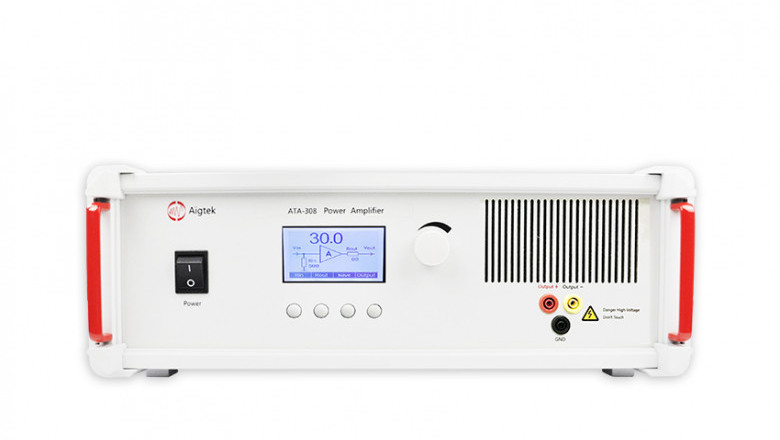

ATA-308 is an ideal power amplifier that can amplify AC and DC signals. The maximum output power is 720Wp. Voltage gain and DC bias are fine adjustable, providing customers with rich test options.
Input
The input is BNC interface, the input resistance is 5KΩ.
Output
The output is 4mm Banana socket, and the maximum Output voltage is 180Vp-p(±90Vp).output current is 8Ap.
LCD Displays
ATA-308 is provided with LCD to display the equipment state and parameters dynamically, the operation interface is clear at a glance, concise and easy to understand.
Voltage gain
The voltage gain of ATA-308 Power amplifier is variable x0~60 (0.1 step/1step), gain displayed on LCD, be adjusted to the required voltage quickly.
Application field
The with electronic experiments of sub-colleges.
Used for MEMS teting
Used for ultrasonic word measurement
Used for electromagnetic field driving.
