Maximum output voltage: 1600Vp-p (±800Vp)
Maximum output current: 40mAp
Bandwidth (-3dB): DC~150kHz
Slew rate: 600V/?s
Introduction

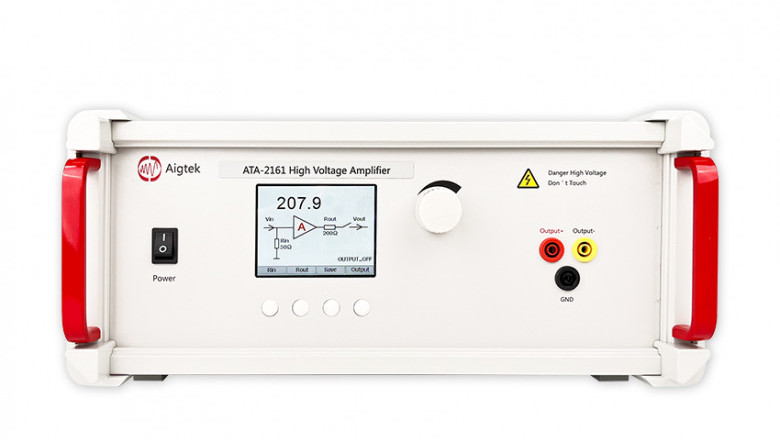

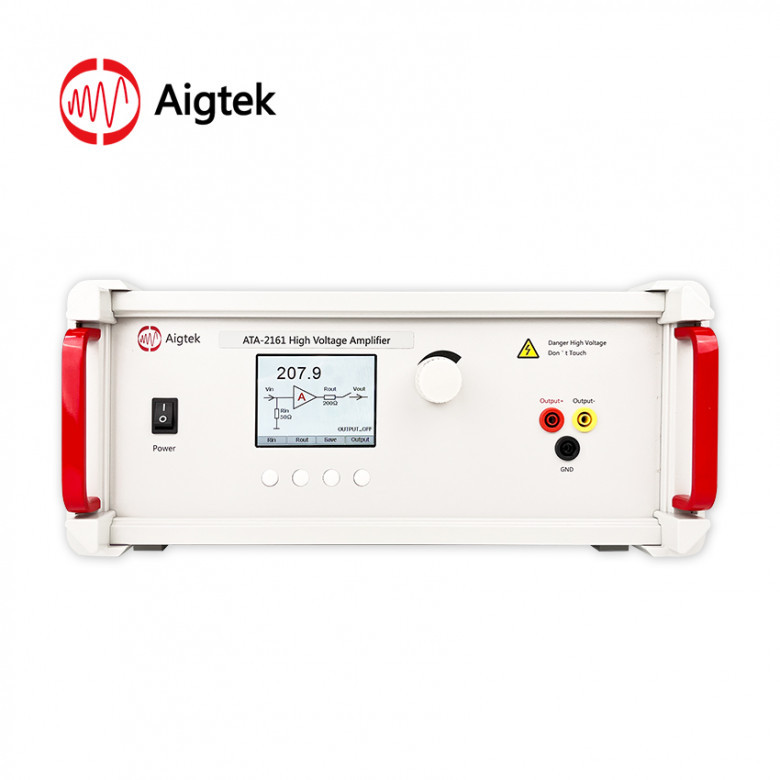

ATA-2161 is an ideal single-channel high voltage amplifier that can amplify the AC and DC signals. Maximum differential output voltage 1600Vp-p (±800Vp); output peak current 40mA, matching with the mainstream signal generator, realize perfect signal amplification.
Input
The input is BNC interface, the input resistance is 50Ω and 5kΩ, perfect matching with the high/low internal resistance signal source.
Output
The input is BNC interface. Maximum differential output voltage 1600Vp-p (±800Vp); maximum output current 40mAp.
LCD Displays
ATA-2161 is provided with LCD to display the equipment state and parameters dynamically, the operation interface is clear at a glance, concise and easy to understand.
Voltage Gain
The voltage gain of ATA-2161 high voltage amplifier is variable (x0-240, 0.1step/1step), gain displayed on LCD, be adjusted to the required voltage quickly.
Monitor
1/100 Monitor: The port voltage is 1/100 of output port, the monitoring port is BNC connector that can be connected with the oscilloscope for monitoring the output voltage in real time.
