There are a large assortment of valves and valve configurations to match all services and scenarios; different uses (on/off, control), different fluids (liquid, gas etc; combustible, toxic, corrosive etc) different materials and different pressure and temperature conditions. Valves at stvvalves.com/ are for starting or stopping flow, regulating or throttling flow, preventing back flow or relieving and regulating pressure in fluid or gaseous handling applications. Common valve types include: Ball,Butterfly,Check, Diaphragm, Gate, Globe, Knife Gate, Parallel Slide, Pinch, Piston, Plug, Sluice, etc.
The following forms of valves are utilized in a selection of applications, these descriptions may offer a basic guideline within the selection of valves.Gate valves generally one of four sorts of bonnets, that provide closure to stop fluids from leaking outside the valve. Screw-in bonnets are quite obvious, durable sealing units involving pressure to seal. Union bonnets provide comfortable access to the valve body for applications which will require frequent maintenance or inspection. Bolted bonnets are usually used for larger valves in higher-pressure applications.

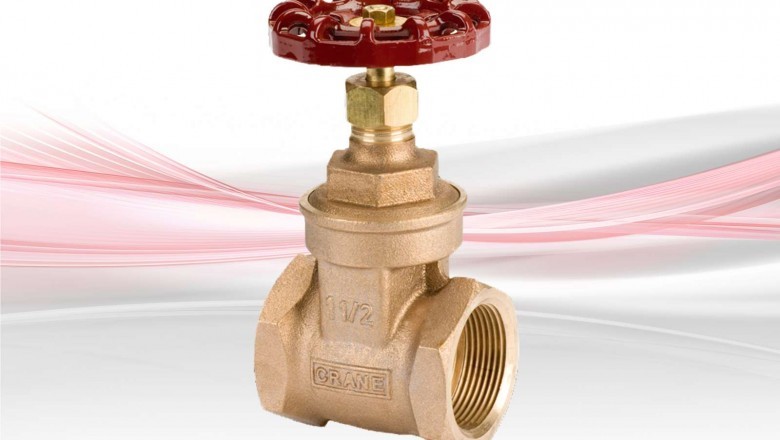

Split wedge discs will be more flexible and may even be used where pipeline strains may distort the valve seats. They were meant to overcome sticking on cooling in high-temperature service as well as operating torque. This seat is compared to two wheels set over a very short axle. Stress analysis needs to know pipeline stresses and improper installation can increase operating stresses.
Double Disc Parallel Seats Gate ValveIn such a a gate valve, there are 2 parallel seats against which a double disc is forced, b y a ‘spreader’. They are utilized for liquids and gases at normal temperatures. As normal gate valves, they can be unsuitable for regulation. To prevent jamming, they will be installed vertical with hand wheel up. Due to spreader spring, a decent seal is achieved relating to the disc and seat. In some models fluid pressure is employed to force the disc resistant to the seat.
A valve with such type of wedge could possibly be installed in any position which is suitable for virtually all fluids. It is practical for turbulent flow.The flexible wedge gate valve illustrated in below Figure is really a one-piece disk using a cut round the perimeter to boost the ability to match error or change within the angle between your seats. The cut varies bigger, shape, and depth.
A shallow, narrow cut gives little flexibility but retains strength. A deeper and wider cut, or cast-in recess, leaves little material with the center, allowing more flexibility but compromises strength.
