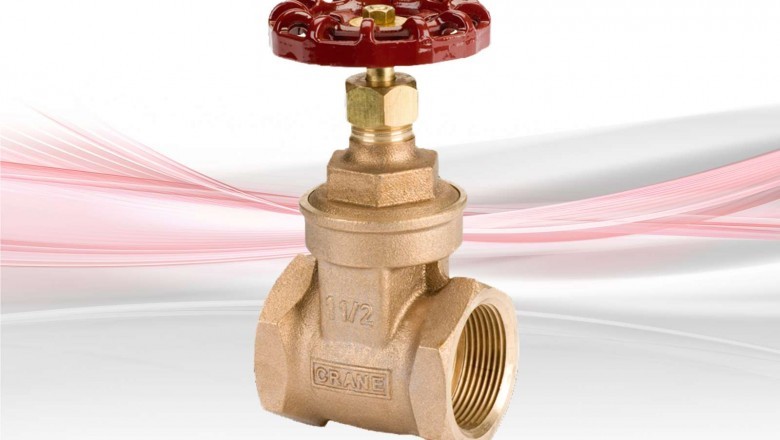

Gate valves could have a rising or nonrising stem design. Rising stems are attached right to the gate and supply a visual indicator from the valve position. Nonrising stems are usually threaded in to the upper part from the gate and also have a pointer threaded on the top to indicate position. Nonrising stem designs are ideally suited to applications where vertical space is bound like dual wafer check valve, in well applications, and where scraping or pigging is not required.
Gate valves were created with a sealing unit to supply a tight seal throughout the stem. Our patented single loaded-spring (SLS) stem seal design, utilised in Saf-T-Seal slab gate valves and WKM Pow-R-Seal double expanding gate valves, provides superior leak protection as well as a self-adjusting seal created to reduce maintenance.
Because of these excellent operating characteristics, ball valves can be used the broadest spectrum of isolation applications obtainable in a wide range of sizes and materials and come in full fl ow and full through conduit. Advantages - quick acting, straight through fl ow in a choice of direction, low pressure drop, bubble tight shut down & operating torque, easily actuated. Disadvantages - temperature limitiations on seating material, long “relative” in the flesh dimension.
A correct profile on the disk half inside flexible wedge design will give uniform deflection properties in the disk edge, in order for the wedging force applied in seating will force the disk seating surface uniformly and tightly from the seat.
Gate valves utilized in steam systems have flexible wedges. The reason for utilizing a flexible gate is usually to prevent binding with the gate in the valve if your valve is from the closed position.
When steam lines are heated, they expand and cause some distortion of valve bodies. If a solid gate fits snugly between your seat of an valve in the cold steam system, once the system is heated and pipes elongate, the seats will compress resistant to the gate and clamp the valve shut.
In this kind of gate valve, discs wedge against inclined seats without by using spreader. They are smaller valves mainly employed for steam service. This type of construction allows the discs to rotate, thus distributing wear.
Single Disc Parallel Seats Gate ValveThis valve provides closure with flow in a choice of direction. There are less stresses on stem and bonnet than wedge gate valves. They are mainly employed for liquid hydrocarbons and gases.
