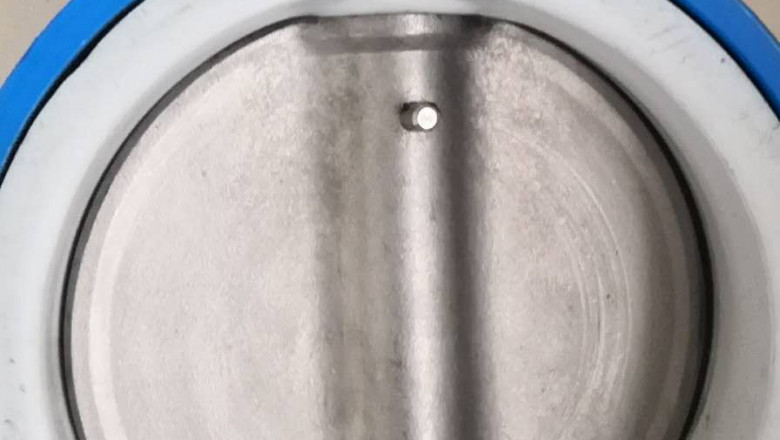

Butterfly valve manufacturer in India
Butterfly valve manufacturer in India
Specialityvalve is the most trusted and leading Butterfly valve Manufacturer in India.
Butterfly Valve are quarter-turn valve that is used to regulate, stop or start the flow. They are lightweight valve and are easy to operate.

Butterfly valve manufacturer in India



Specialityvalve is the most trusted and leading Butterfly valve Manufacturer in India.

Butterfly Valve are quarter-turn valve that is used to regulate, stop or start the flow. They are lightweight valve and are easy to operate.

So how it got its name, well that’s interesting as some valve got its name by their shape and others by their movement and Butterfly Valve got its name by the movement of its disc. Its movement is just like the airplane wings or like butterfly, i.e when butterfly lands its wings are closed and vice versa that is when fly are 90 degree to each other just like it, the movement is there for butterfly valve.

Unlike Gate Valves, butterfly valves can be used for throttling or regulating flow as well as in the full open and fully closed position.



Operation

Working of Butterfly is very simple. The disc of the valve is directly connected to the actuator through the middle piping which is directly connected to the handle. The motion of the flow depends on the motion of the handle. Generally in the closed valve the disc is perpendicular to the flow of the media and when the handle is moved to 90 degrees so does the disc which becomes parallel to the flow, granting the flow to pass through the valve.



Parts of Butterfly Valve

       Disc

       Stem

       Handle

       Seal

       O-ring

       Valve Body



Types of Butterfly Valve

       Wafer-style butterfly Valve

       Lug-style butterfly Valve

       Double flanged



Industries

Industries where Butterfly Valves are used are:

       Chemical

       Petroleum

       Mining

       Oil

       Water



Advantages

       Light in weight

       Quick operation

       Available is large sizes

       Low maintenance cost

       High pressure recovery and low pressure drop



Description

Body Material:  Cast Carbon steel (WCC,WCB, WC6), Stainless Steel [SS316, SS304, SS316L, SS904L, CF8, CF8M, F31L, F91], DUPLEX STEEL  and Super duplex Steel (F51,F53,F55) , Cast iron, Ductile Iron.

Size – 2” – 48”

Class: 150 to 300; PN 6 – PN 25

Ends: Wafer, flanged, lug

Operations: Lever operated gear operated, pneumatic actuated and electric actuated.



We make the best quality Butterfly Valve Manufacturer in India and supply it. We provide great support to our customers.



Visit us at:

https://www.specialityvalve.com/product-category/butterfly-valve/





Pneumatic Actuated Butterfly Valve Manufacturer in India



Specialityvalve is a well known Pneumatic Actuated Butterfly Valve manufacturer in India.

As we all know that Butterfly Valve are 90 degree rotation valve, where if the disc is perpendicular to the flow, the flow of media stops and if the disc is parallel to the flow the media flows through the valve. The movement and operation of Pneumatic Actuated Butterfly Valve is same as that of Butterfly Valve, but instead of hand-wheel operation it is Pneumatically operated.

A pneumatically operated butterfly valve is a mechanism that transforms energy in the form of compressed gas into mechanical motion. Pneumatic Butterfly actuators are highly efficient, cost-effective, and safe sources of motion control that transform energy into rotary or linear motion using pressurized air or gas. They're especially well-suited to the continuous opening and closing of valves, as well as other industrial applications where the use of electricity may result in a fire or ignition hazard.

They're especially well-suited to the continuous opening and closing of valves, as well as other industrial applications where the use of electricity may result in a fire or ignition hazard.



Operation of Pneumatic Actuated Butterfly Valve Manufacturer in India

The working of this is very simple, and cost-effective. There is a disc connected to the centre rod, which rotates the disc for the starting and stopping the flow of media. This valve is operated by pressurized gas which is controlled by pneumatic actuators which is fixed on it so we don’t have to manually operate the mechanism. Pneumatic actuator operates in high efficiency and low cost.



Types of Pneumatic Actuated Butterfly Valve:

       Wafer-style butterfly Valve.

       Lug-style butterfly Valve.



Components

       Seat

       Disc

       Pneumatic actuator

       Stem

       Valve Body



Industries

       Oil and Gas

       Chemical

       Marine

       Petrochemical



Advantages

       Small and lightweight

       Simple and Compact structure

       Flow is in straight line

       Can be operated without electricity



Description:

       Body material: Cast iron, Ductile iron, Stainless steel, Carbon steel, Duplex steel.

       Class: 150-600

       PN6-PN100

       Size: 1”-80”.

       Connection type: Buttweld, flanged, Lug type, Wafer type.

       Disc: CF8M, SS316L, CF8, Cast iron, Carbon steel, Ductile iron.

       Operation: Pneumatic operated



Actuator is the mechanism of opening and closing of valve or allow intermediate positioning of the valve.

We are leading Pneumatic Actuated Butterfly Valve manufacturer in India.



Visit us at:

https://www.specialityvalve.com/product-category/pneumatic-actuated-butterfly-valve/
