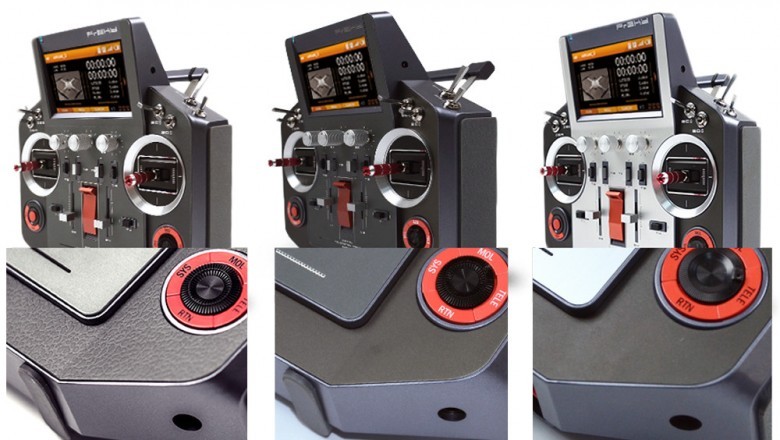

Frsky Transmitter X12S features a full color LCD screen
FrSky introduce the newest and most powerful radio, the horus x12s. The Horus is the new flagship radio from FrSky with premium gimbals, pots, switches and components. The radio also has a built in GPS module, speaker, haptic feedback and more. The Frsky Transmitter X12S features a full color LCD screen with an easy to navigate UI system. Each radio comes with a high quality hard case for transportation.
Gimbals
The sticks are perfectly machined with a red finish to them, that goes together with the other details found at the front plate of the Tx. The stick height can be adjusted by simply screwing or unscrewing the sticks themselves. The rest of the assembly is perfectly fitted and adapted to the front panel thanks to the CNC machined parts. Smoothness is omnipresent in this transmitter: the gimbals can’t be an exception. The Horus manages to do it through hall sensors and a total of 6 bearings, to minimize frictions as much as possible. An exquisite feel, as it deserves.
Controls
On both sides of the transmitter, at the top and in both sides we can find 4 switches (two in the front panel and two at the top). Six of which are 3 position and the other two are 2 position switches. The one on the right is sprung and goes back to its original state. But there’s even more: at the back, we can find sliders with a very soft and smooth feel to them.
Still in the top part, in the middle and under the display we can find three rotating buttons. In both ends we can find some pots with a very soft touch. The central one contains a surprise, as it’s a 6 position encoder that will allow us to configure, for example, up to 5 different flight modes in one and only button!
Under the rotating buttons we can find 4 other buttons: two for the vertical trimming and two that can be assigned to do custom functions. The trims are the black ones. Below them are the horizontal trims (also black) and surrounding the power button, two vertical sliders that might remind of a mixing console. And once again when moved all you feel is extreme smoothness.
To finish off, in the lower part of the front plate the Horus has some buttons, to be operated with your thumbs, to navigate through the configuration menus of the transmitter.
As it can be seen at glance, this is a transmitter with so many controls for every taste. It’s impossible to fall short in buttons!
RF module
The transmitter comes with an upgraded internal IXJT RF module. This module is connected to an internal antenna, but if you don’t want to use that one, you can always plug in your own one to be used with the module. To do that you just have to change the model config so that it uses the new one instead of the internal one.
Also, there’s the possibility of connecting any compatible module in the back module bay, so the compatibility with nearly every craft is guaranteed.
Charger and battery
The transmitter includes an internal 2200 mAh NiMH battery, which is a very good capacity for a stock battery. This is a plus; keep in mind that the power consumption of the Horus can be higher than a Taranis’, due to all the new functions, like the full colour screen.
The transmitter incorporates a built-in charging circuit, that regulates and controls the charge of the battery, and turns itself off when the battery is fully charged. That means that if you want to charge it it’s as simple as plugging in the power transformer included in the kit to the transmitter and waiting until the charging indicator LED goes from blinking green (battery level detection and charge beginning) to solid green (charging) to no led (the same LED turns off when the battery is fully charged), and our Horus is already charged and ready to fly!
Additional details
At the back of the transmitter we can find various covers under which different things are hidden. Between them there’s the microSD port with the microSD in it, that has in it the operating system / firmware used by the transmitter. We can also find a USB port, which we can use to transfer files to our Horus without having to remove the microSD card.
In the microSD we can also store MP3 files to be used later, image files to customize certain models, voice warning tracks...
Under the cover right besides it we can find two different connectors, to use the transmitter in trainer mode. But not only that, let’s not forget that according to FrSky’s specs on the Horus, different Horus transmitters can be linked between each other wirelessly to use the trainer mode more comfortably.
